Recommendation_Hangzhou Shuohui Machinery Co., Ltd.

Featured Recommendation

Provide comprehensive and high-quality technical solutions

Turnkey Project Service

We provide one-stop integrated services, covering everything from project design, technical development, equipment manufacturing, installation and commissioning to final acceptance upon commissioning.

Production Line Equipment And Technical Services

Provide partial production line equipment on demand, along with supporting installation, commissioning, and process integration technical services.

Professional Technical Services

Provide specialized technical services such as complete process technology development, production line optimization, equipment maintenance, technical consulting, and personnel training.

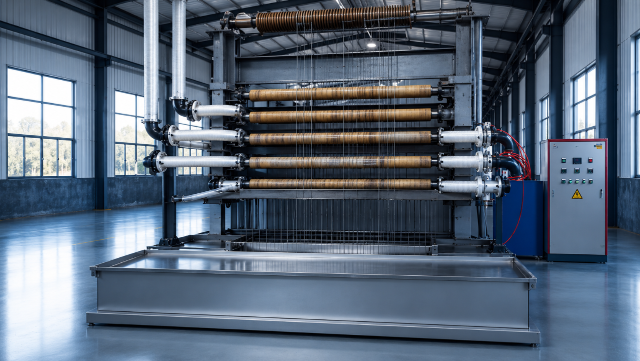

Oxidation-reduction process steel wire hot dip galvanizing and aluminum and alloy production line

Since 2000, our company has been researching and developing the hot-dip galvanizing alloy technology for steel wires using the redox method. We have closely cooperated with multiple enterprises in the field of hot-dip galvanizing alloy technology for steel wires, including Hangzhou Chuangyu Company, Hangzhou Chuangli Company, and Markfield (Hangzhou) Company. We have successfully researched and developed the hot-dip galvanizing alloy technology for steel wires using the redox method, formed a complete set of solutions for this technology, and obtained multiple invention and utility model patents for our core technology. Our company has achieved industrial production in multiple steel wire hot-dip galvanized aluminum alloy coating steel wire production enterprises, achieving significant economic and social benefits for users in terms of energy conservation, clean production, and quality improvement. We are trusted and highly praised by our users, and our application prospects are vast.

Technical Advantage

Process innovation empowers production, and technology forges core competitiveness

Short-Process Production Technology

The exclusive single plating process significantly simplifies the production process, reduces the length of the production line and the area of the factory building, and lowers project investment and personnel allocation costs.

Green Environmentally Friendly Pollution-Free

By adopting redox annealing technology, we eliminate traditional processes such as acid washing, water washing, and plating aids, thus eliminating the production of hazardous chemicals. This achieves green production, improves the working environment, and prevents occupational diseases.

Production Costs Have Been Reduced

Eliminate redundant process steps to significantly reduce production energy consumption; after heat treatment, the steel wire is directly placed into the alloy pot, reducing the heat supply required for the alloy pot and further cutting costs.

The Product Quality Is Stable

The single plating process ensures uniformity and stable composition of the alloy coating, reduces the thickness of the brittle layer in zinc-iron alloy, significantly enhances the adhesion of the coating, and guarantees the overall stability of product quality.

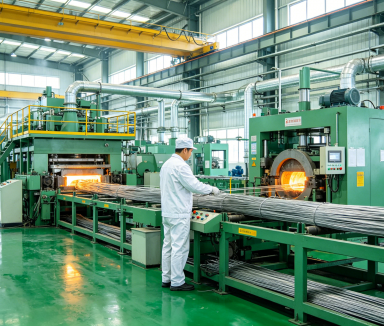

Steel Wire Heat Treatment Production Line

The steel wire heat treatment production line consists of a wire spooler, a heat treatment furnace, a lead bath furnace, and a wire take-up machine. After being processed through this production line, steel wires can obtain an extremely fine lamellar sorbite structure. This structure is the optimal microstructure for steel wire drawing, ensuring that the steel wire not only possesses high tensile strength but also exhibits good toughness during subsequent drawing processes. Therefore, the steel wire heat treatment production line is an essential equipment for the production of high-performance steel wires.

Steel Cylinder Heat Treatment Production Line

The steel cylinder heat treatment production line adopts continuous heat treatment to process steel cylinders, replacing the traditional intermittent heat treatment method and greatly improving production efficiency. The production line utilizes medium frequency induction heating, which allows for normalizing, annealing, and incineration treatment of steel cylinders ranging from 3Kg to 50Kg. This production line features low energy consumption, high thermal efficiency, and a safe and reliable automatic control system, making it an indispensable supporting equipment for steel cylinder manufacturing enterprises.

Pit, Bell, And Trolley Heat Treatment Furnaces

Our company also specializes in producing various types of pit, bell, and trolley heat treatment furnaces. among which

The bright bell annealing furnace features non-decarburization, non-oxidation, non-discoloration, and uniform hardness. It is suitable for heat treatment of high-quality carbon steel, alloy steel, and tool steel.

The strong convection bell-type annealing furnace is suitable for the spheroidizing annealing treatment of wire rods and coils made of medium and high carbon steel and alloy steel. Its features include a super-strong convection fan, which ensures uniform furnace temperature and fast heating speed; a strong cooling system, which allows for rapid temperature reduction in the furnace, saving time and effort and improving production efficiency; and the absence of oxide scale on the material surface after annealing, with a high spheroidization rate and stable quality.

The pit annealing furnace is suitable for heat treatment of rod-type and long-shaft components. It can utilize electricity, oil, and gas as heat sources, and is designed for tempering, normalizing, quenching, carburizing, or carbonitriding heat treatment of workpieces.

The trolley furnace is a nationally standardized energy-saving periodic furnace. The trolley furnace produced by our company adopts exclusive anti-wire-falling 20° inclined wire support bricks and furnace mouth anti-workpiece collision bricks, which improve the service life of the furnace and reduce maintenance costs. The trolley furnace is a heat treatment furnace that does not require foundation installation and can be used by simply placing it horizontally

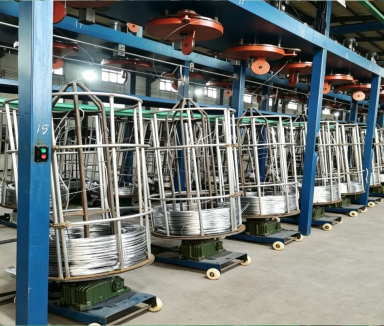

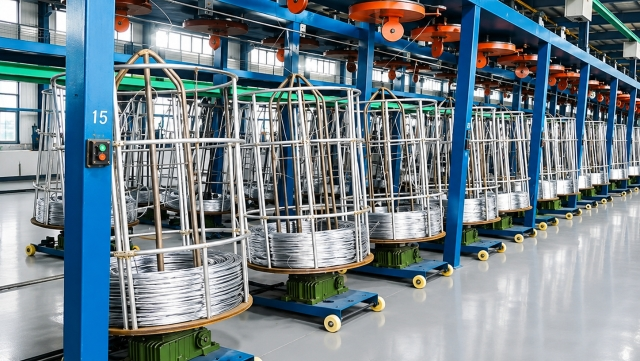

Various Steel Wire Products

Our company is capable of producing a wide range of high, medium, and low carbon steel wires, as well as steel wire finished products - steel wire mesh. With an annual production capacity of nearly 20,000 tons, we offer steel wire production specifications ranging from 0.5mm to 16mm.

The main types include: steel wire for copper-clad steel wire, steel wire for hardware products, steel wire and mesh for construction, steel wire for cultural and educational supplies, steel wire for nail making, steel wire for chain drive pins, and steel wire for bearings.

The company possesses over 30 sets of wire drawing machines, including straight-feed, pulley-type, and water tank-type models, with a comprehensive range of large, medium, and small specifications. Notably, the largest single-head wire drawing machine boasts a reel diameter of 1200mm. Additionally, the company is equipped with multiple bright bell-type annealing furnaces and forced convection shaft-type annealing furnaces. These facilities provide a solid quality assurance for steel wire production.
